EKL4-W Current Temperature Fault Online Monitor OEM/ODM
EKL4-W Current Temperature Fault Online Monitor: The EKL4-W online monitor measures short-circuit fault current, grounding fault current, cable temperature and real-time current. Typical ranges include 1 A–10000 A for short-circuit current, 4 A–120 A for grounding current and -40°C to +120°C for cable temperature, with settings available per customer requirements. It supports industrial lithium batteries or DC5–28 V external power, IP65 electronic CTs, and RS485 communication with MODBUS protocol for remote distribution-cable condition monitoring.
Trusted by world-class brands & organizations of all sizes
Product Details
Product Overview

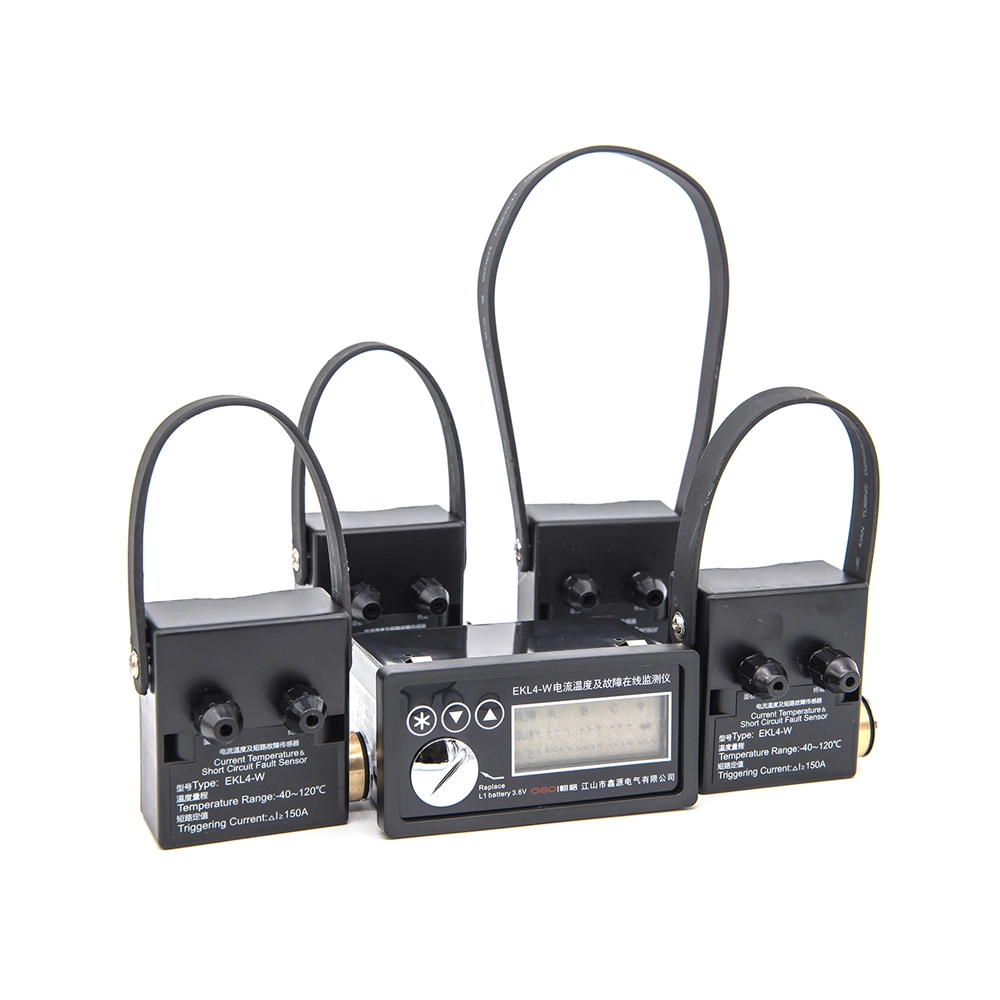

The EKL4-W Current Temperature Fault Online Monitor monitors cable fault current, grounding current, cable temperature, and real-time current. Maintenance teams use it to locate abnormal cable conditions faster. The device helps shorten inspection time after a fault. It also supports safer distribution-line operation. Utilities can use it to improve fault response and service continuity. The product suits routine patrol and project commissioning work.
Monitoring Function
The monitor measures short-circuit fault current from 1A to 10000A. It measures grounding current from 4A to 120A. It also tracks cable temperature from -40°C to +120°C. These settings help match different cable networks and protection plans. Operators can identify abnormal current events more clearly. The monitoring logic helps separate real faults from routine load changes.
Performance and Power
Users can select industrial lithium batteries or DC5–28V external power. IP65 electronic CTs support field installation. RS485 communication with MODBUS protocol sends data to remote monitoring systems. The structure supports installation in medium-voltage distribution equipment. Technicians can maintain the device during routine line inspection. The hardware suits outdoor-related cabinet networks and cable distribution sites.
Fault Indication and Alarm
The EKL4-W Current Temperature Fault Online Monitor gives local fault information and supports alarm output. It helps crews identify the affected cable section. This function reduces unnecessary patrol work. It also helps improve restoration efficiency after distribution faults. Clear status feedback supports faster troubleshooting decisions.
Custom Options and Project Support

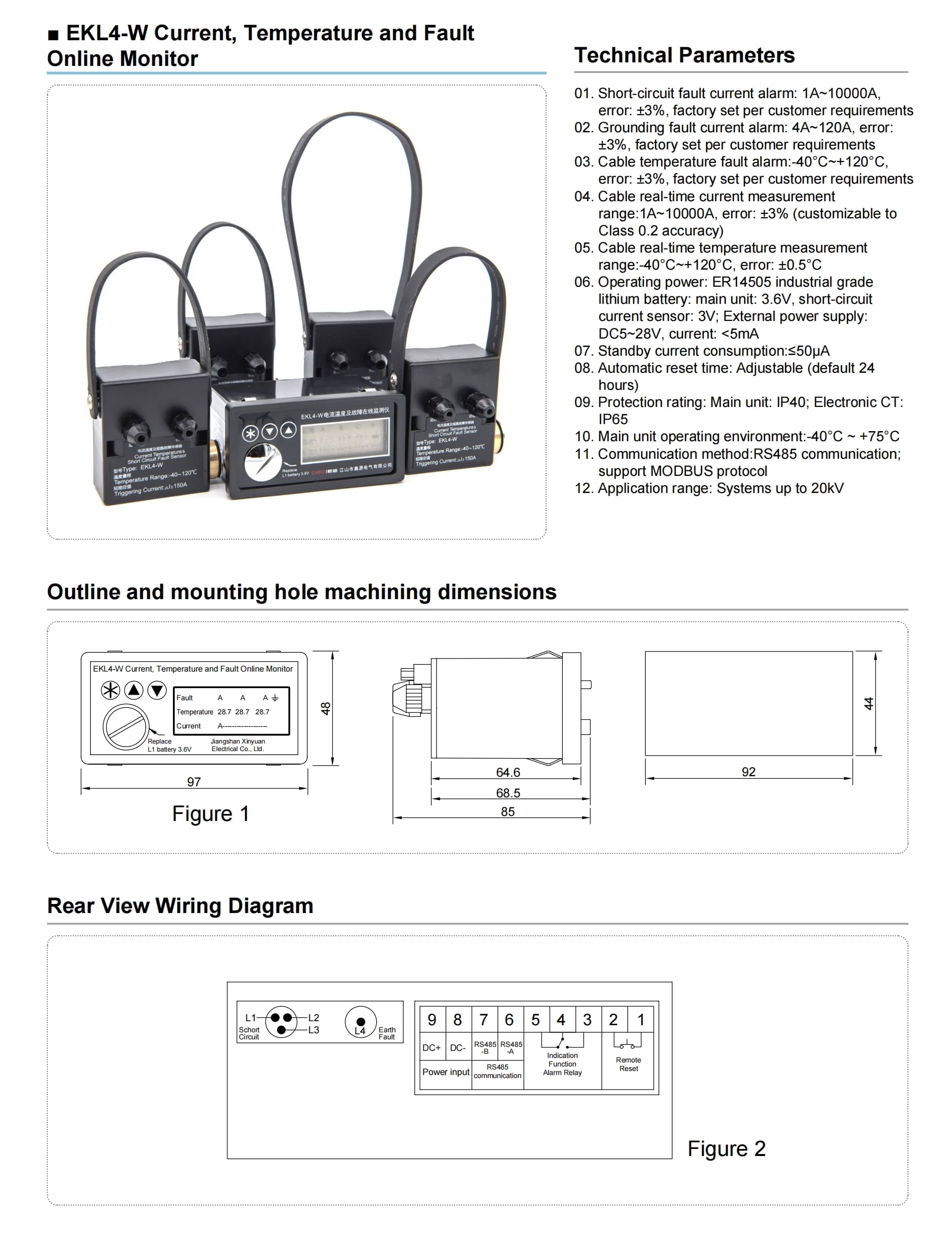

Manufacturers can configure alarm thresholds, reset mode, sensor type, power supply, communication, and output contacts. Product documents can include wiring diagrams and setting tables. These materials help engineers match the product to cable schemes. This support simplifies field setup and future maintenance. With RS485 online cable-condition monitoring, the EKL4-W Current Temperature Fault Online Monitor supports utilities, contractors, and cabinet manufacturers.
