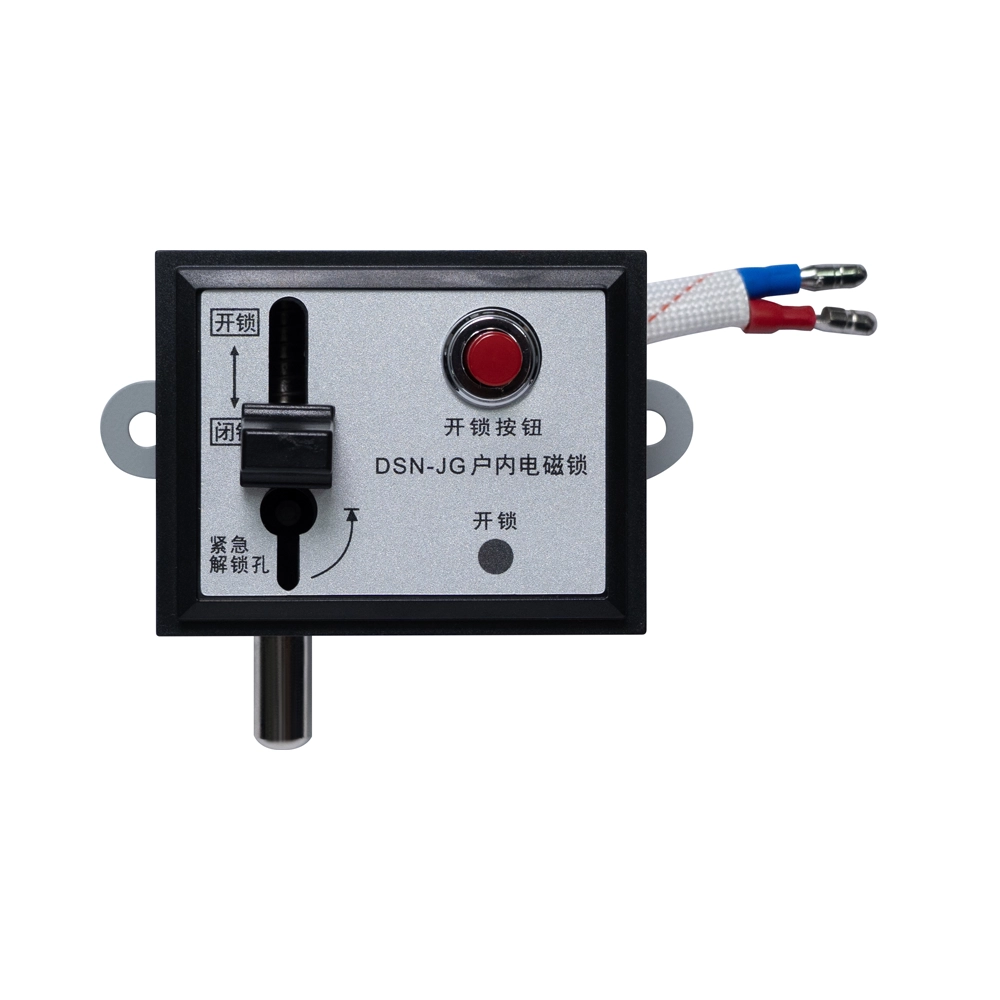

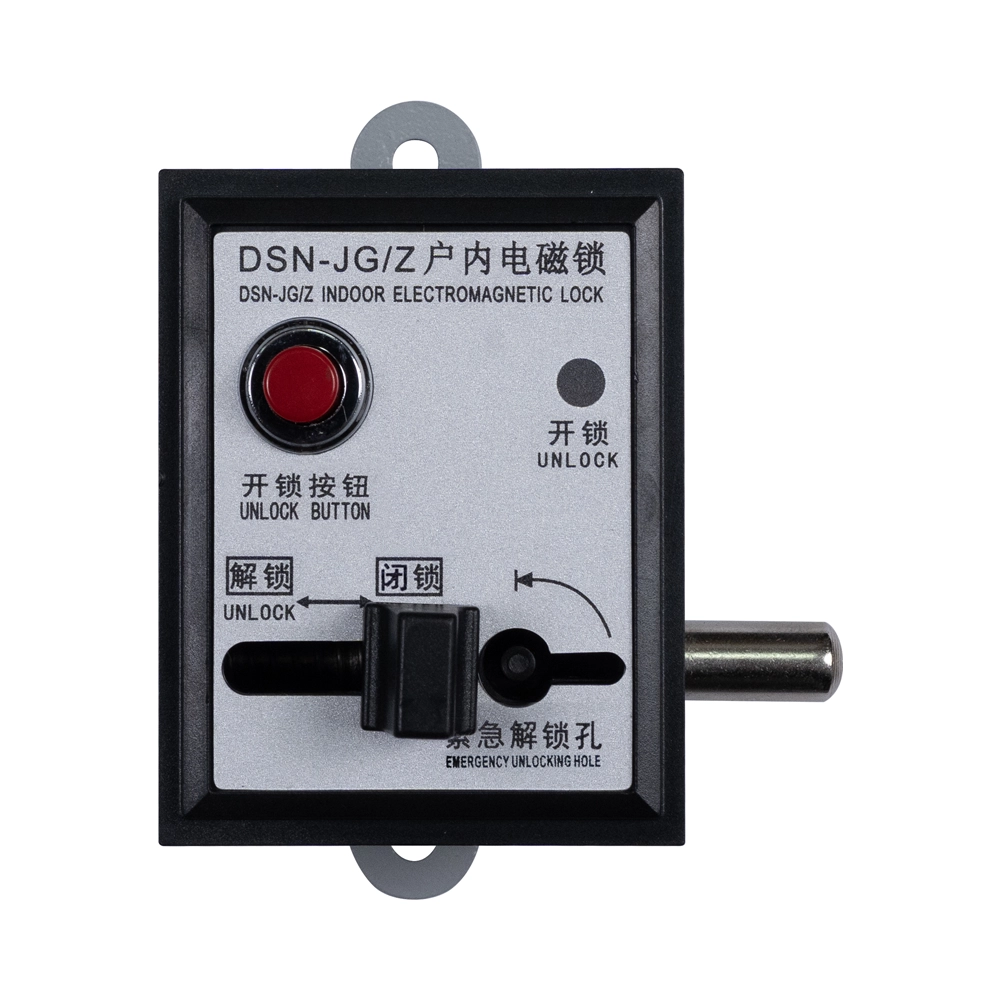

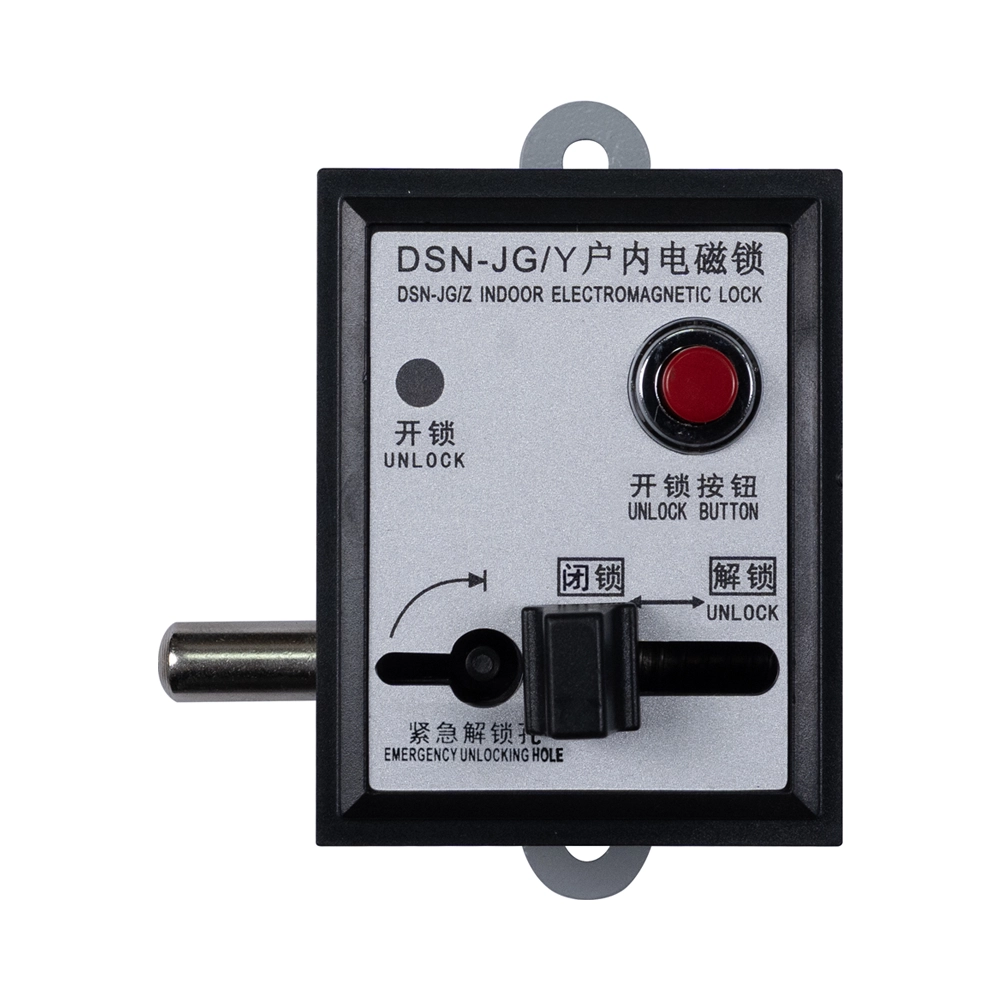

Product Overview

The Active Electromagnetic Lock for Switchgear gives cabinet teams reliable interlock control. Operators use it before door opening, grounding, switching, or mechanism release. The unit supports indoor switchgear, distribution cabinets, and safety interlock circuits. Panel builders apply it in new cabinets, retrofit projects, and OEM production. Maintenance teams gain a clear control point for safer access procedures.

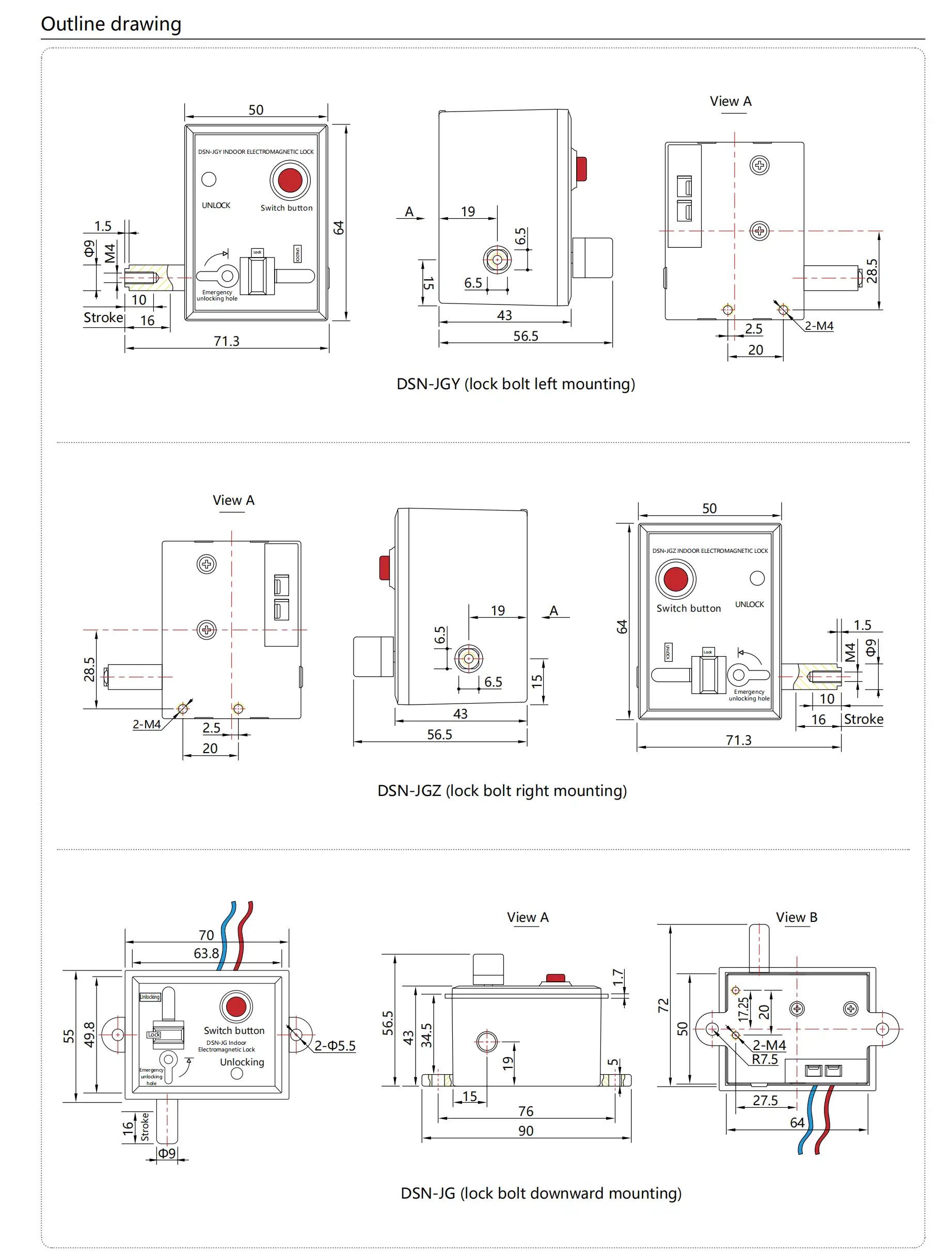

Structure and Installation

Panel crews mount the lock on cabinet doors, mechanisms, or grounding switch positions. Technicians align the locking pin, bracket, and wiring before functional checks. The compact body saves space inside secondary control compartments. Maintenance teams inspect the coil, terminals, and mechanical movement during service. Factory teams keep consistent installation steps across batch cabinet production.

Electrical Interlocking

The lock connects with control circuits and cabinet interlock logic. Operators follow the approved sequence before they release doors or mechanisms. The coil action helps manage access according to live circuit conditions. Technicians test the interlock function during commissioning and service. Cabinet designers coordinate lock positions with grounding and switching procedures.

Safety Function

The locking action blocks unsafe access when procedures require restraint. Operators confirm circuit status before they open doors or move mechanisms. Technicians gain a practical safeguard during inspection and maintenance work. The device helps teams reduce misoperation risks in switchgear rooms. Clear interlock behavior supports safer coordination between electrical and mechanical steps.

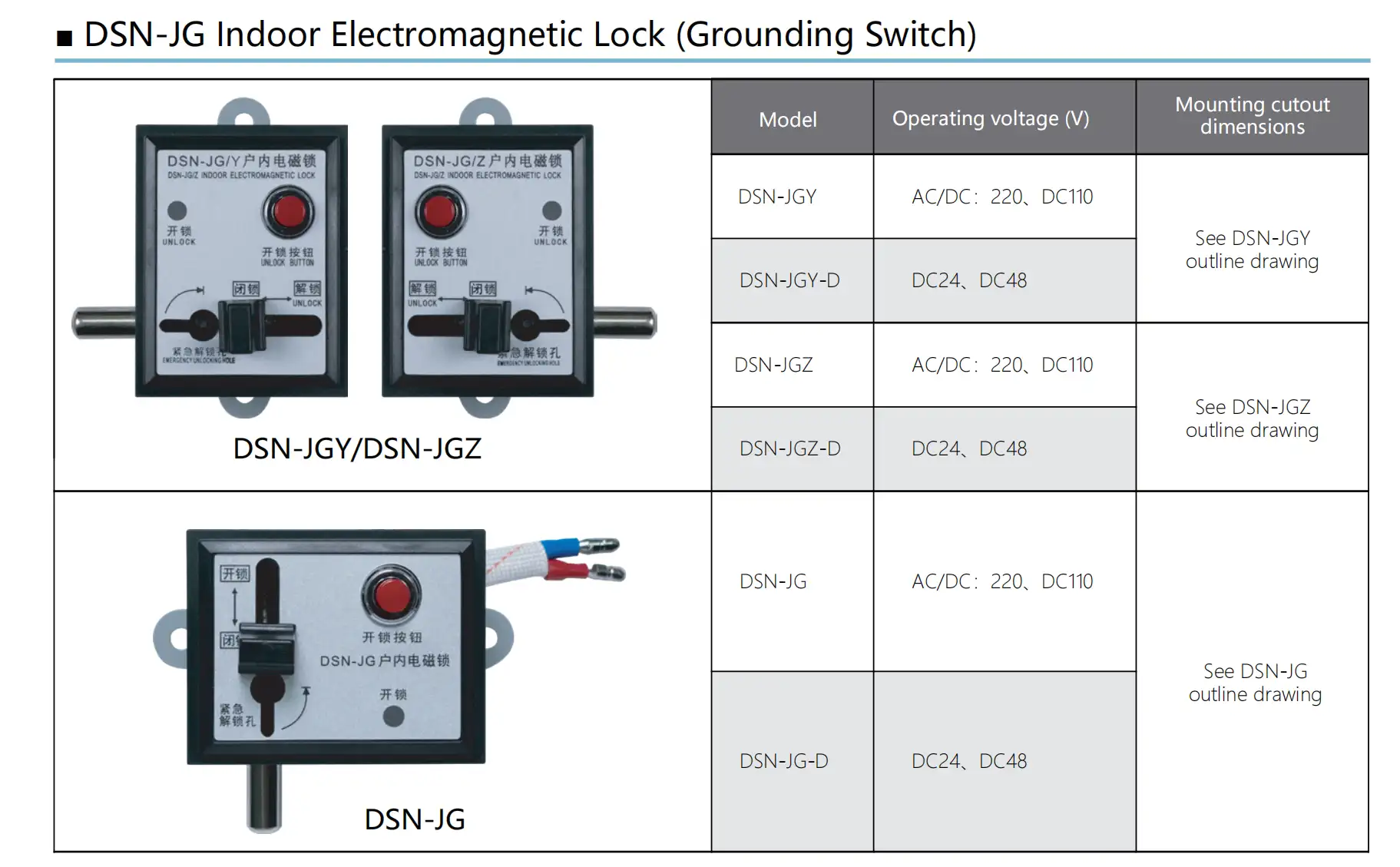

Custom Options and Project Support

Engineers can specify coil voltage, terminal style, pin structure, and mounting method. OEM teams can request labels, brackets, wiring references, and batch documentation. For project supply, Active Electromagnetic Lock for Switchgear helps standardize cabinet selection and after sales service.
