92×44mm Integral Plug-in VDIS for Medium-Voltage Switchgear
Panel cutout size: 92 × 44 mm
Mounting type: Integral plug-in series
Application: Indoor medium-voltage switchgear and power distribution equipment
Rated system voltage: 3.6kV / 7.2kV / 12kV / 24kV / 40.5kV
Frequency: 50/60Hz
Display component: Low-power LED
LED service life: More than 100,000 hours
Customization and Project Support

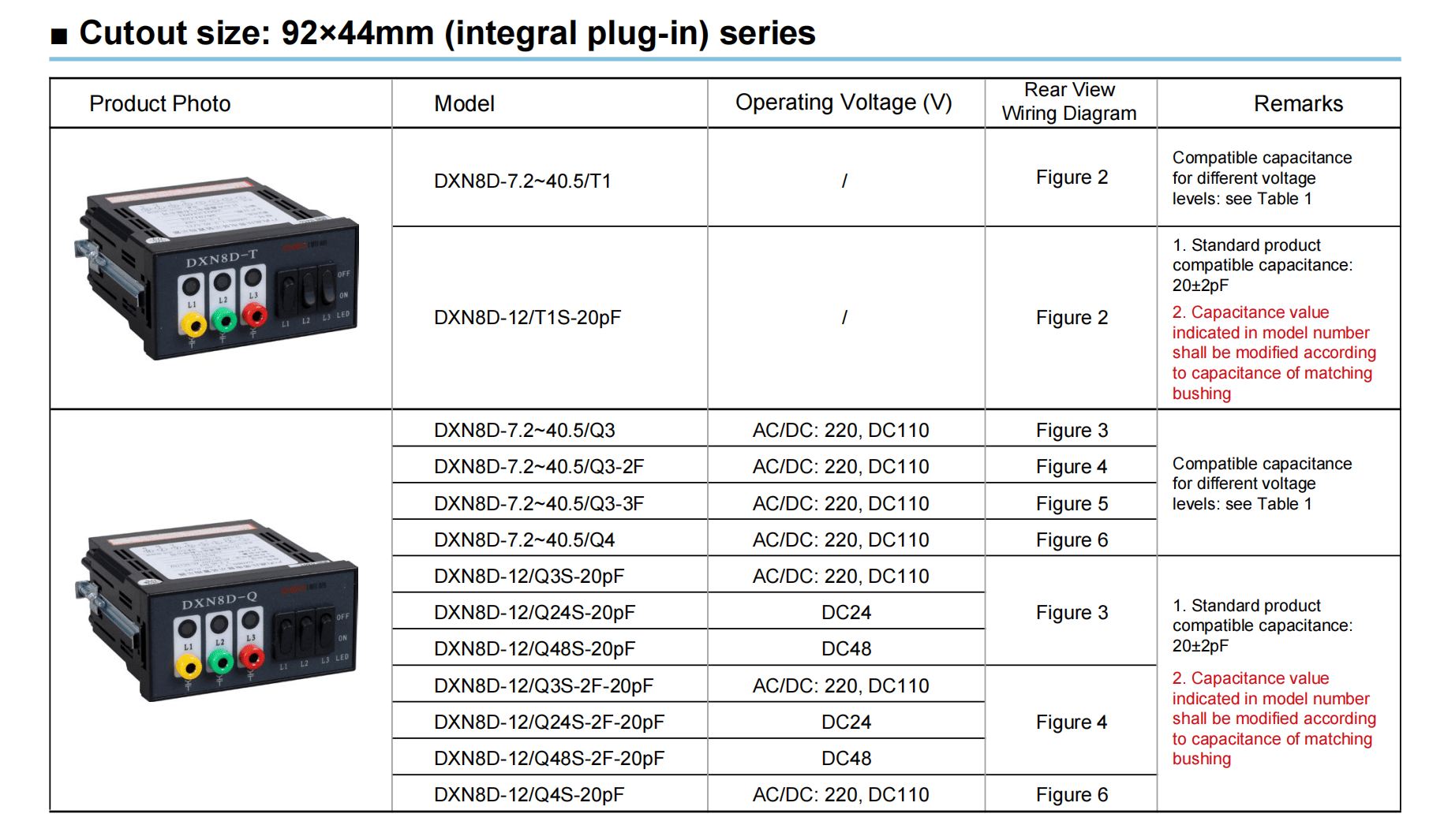

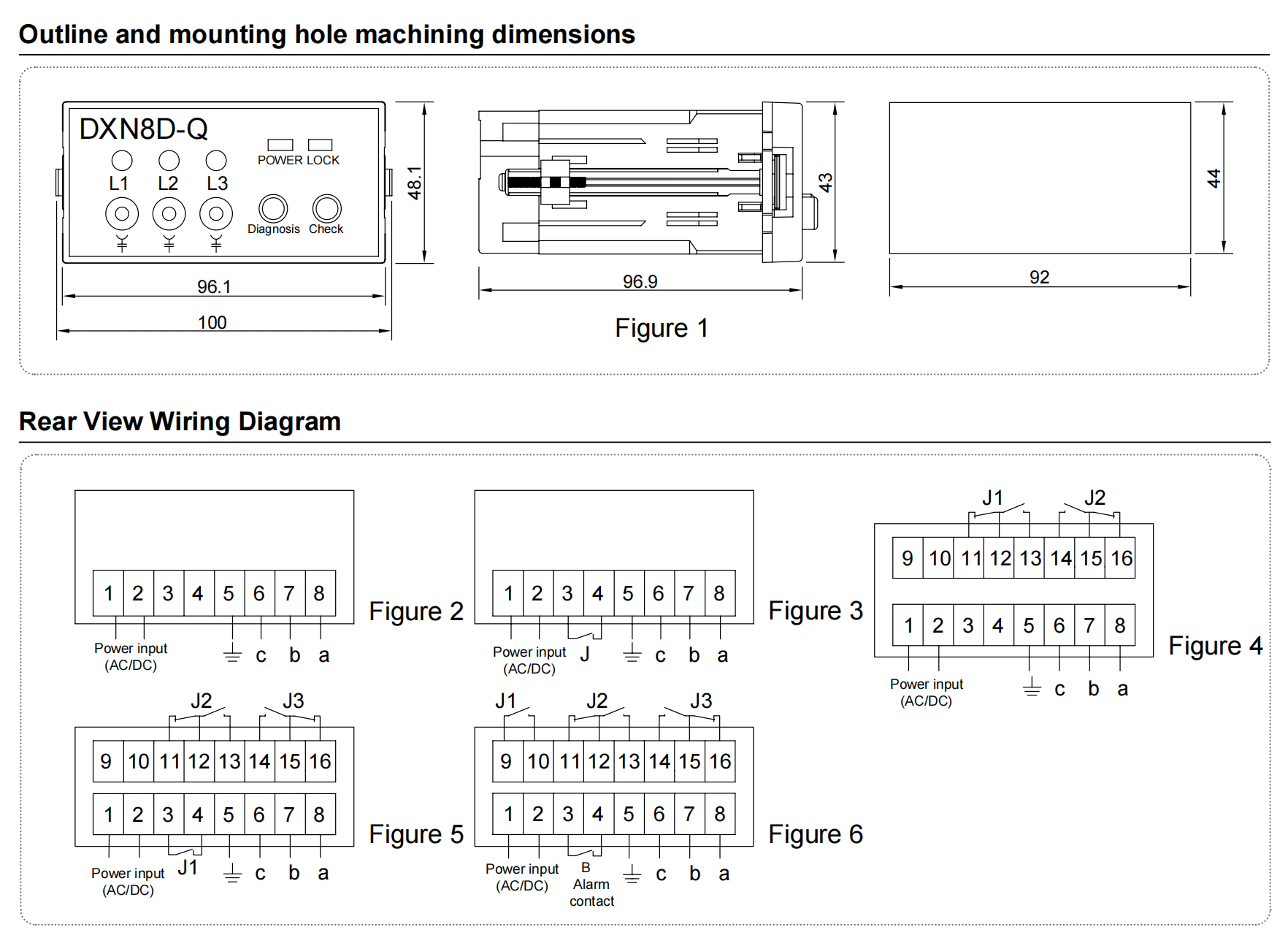

The 92×44mm Integral Plug-in VDIS can be customized according to different project requirements, including primary voltage level, operating power supply, sensor capacitance, panel cutout, terminal arrangement, alarm output, communication function, and product marking. For technical documents or product pages, it is recommended to include outline drawings, installation dimensions, panel cutout diagrams, and rear wiring diagrams to support accurate selection, cabinet design, and project delivery.
Trusted by world-class brands & organizations of all sizes
Product Details
Product Overview

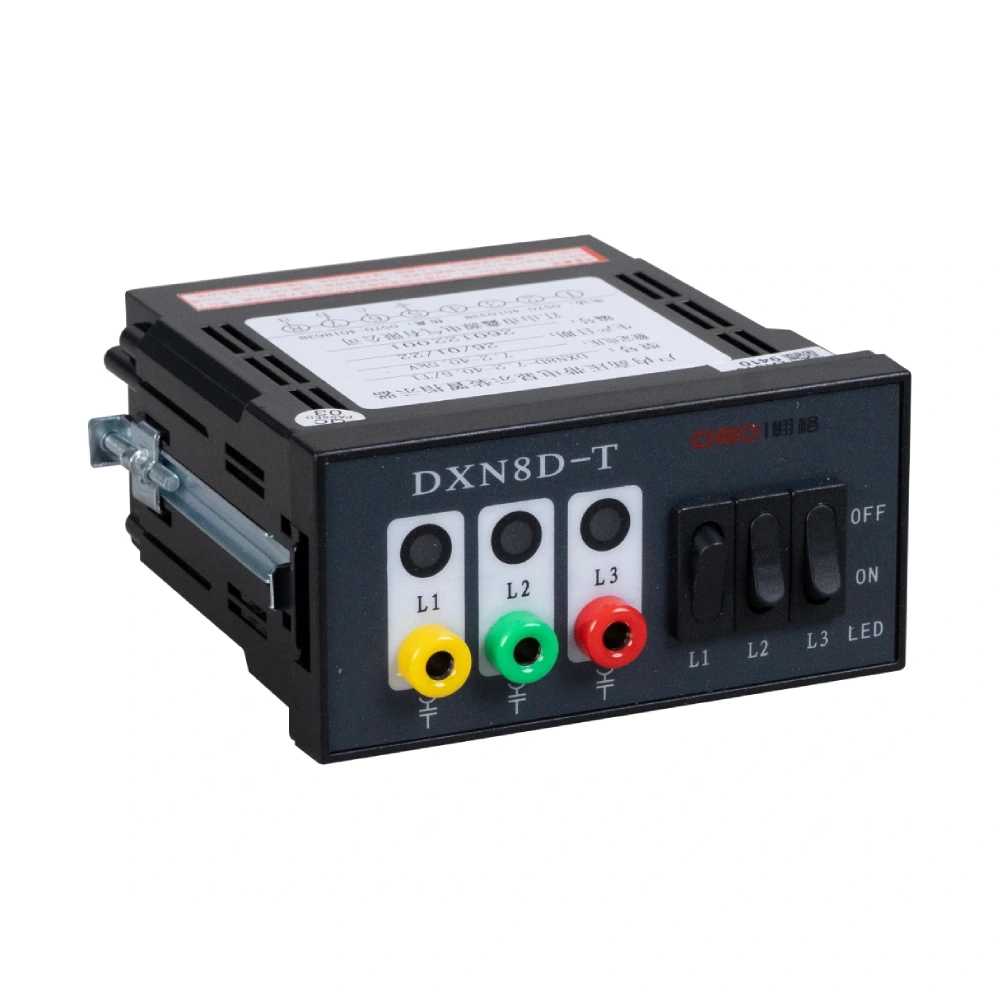

The 92×44mm Integral Plug-in VDIS gives operators a clear voltage presence indication inside medium-voltage switchgear. It works with 3.6kV, 7.2kV, 12kV, 24kV, and 40.5kV AC systems. It also supports 50/60Hz power distribution networks. Operators can check the line, busbar, or cable side before switching or grounding. This clear status display helps improve daily operation safety.
Plug-in Installation

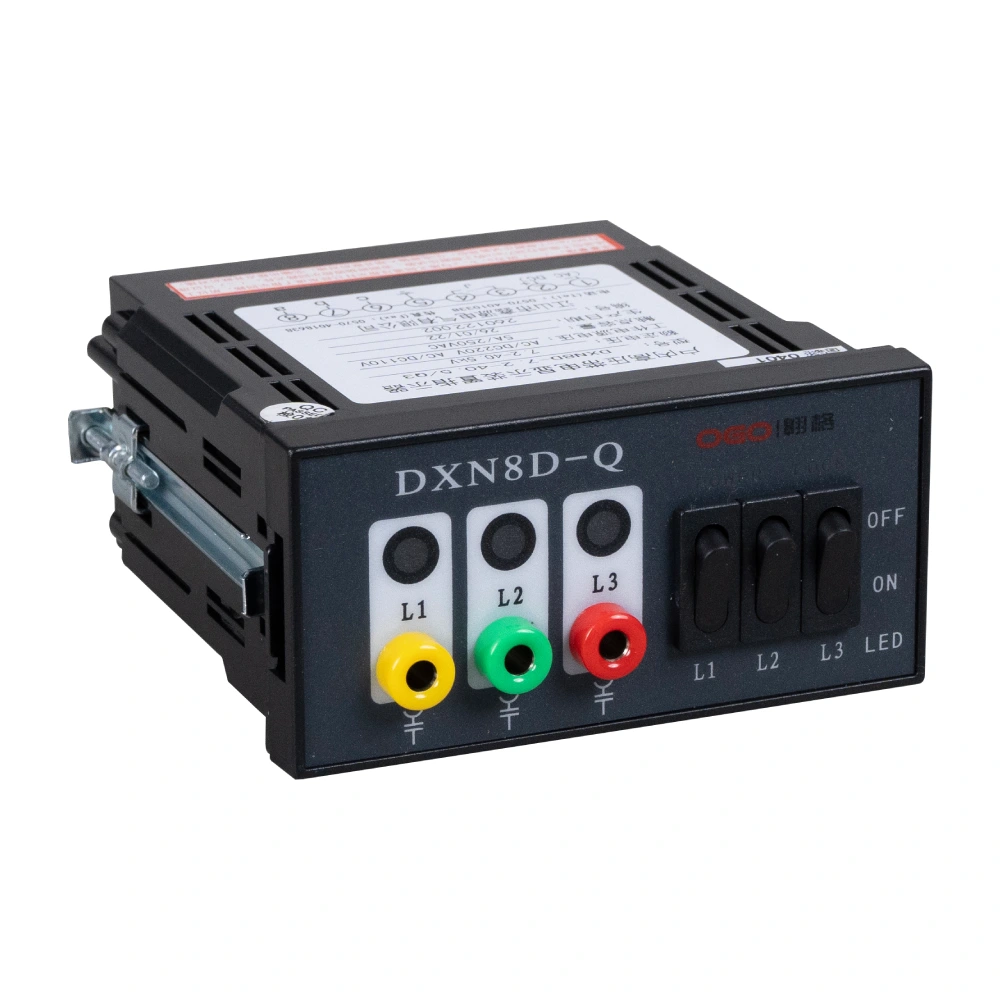

The integral plug-in structure fits a 92×44mm panel cutout. Cabinet makers can install it quickly from the front panel. They can also remove the unit easily during inspection or replacement. The compact structure saves panel space and keeps the cabinet layout neat. It suits standard switchgear production, OEM projects, and engineering delivery.
LED Display Performance
The device uses low-power LED display components. These LEDs offer clear indication, low consumption, and stable performance. The LED service life can exceed 100,000 hours. This long lifespan helps reduce maintenance needs during long-term operation. The display remains easy to read during routine inspection and switching procedures.
Voltage Indication and Safety Interlocking
The 92×44mm Integral Plug-in VDIS works with matching capacitive sensors. It detects voltage presence in the primary circuit and shows the live status clearly. Installers can connect it with disconnectors, grounding switches, and control circuits. This setup helps prevent incorrect grounding operation and unsafe access to live compartments. It also supports anti-misoperation interlocking in medium-voltage cabinets.
Custom Options and Project Support
Manufacturers can configure the product for different project requirements. Options include primary voltage, operating power, sensor capacitance, terminal arrangement, panel cutout, alarm output, communication function, and product marking. Product pages should include outline drawings, installation dimensions, panel cutout diagrams, and rear wiring diagrams. These materials help customers select the right model and plan cabinet wiring. With its compact structure, long-life LED display, and flexible configuration, the 92×44mm Integral Plug-in VDIS serves switchgear factories, contractors, and power distribution system integrators.
