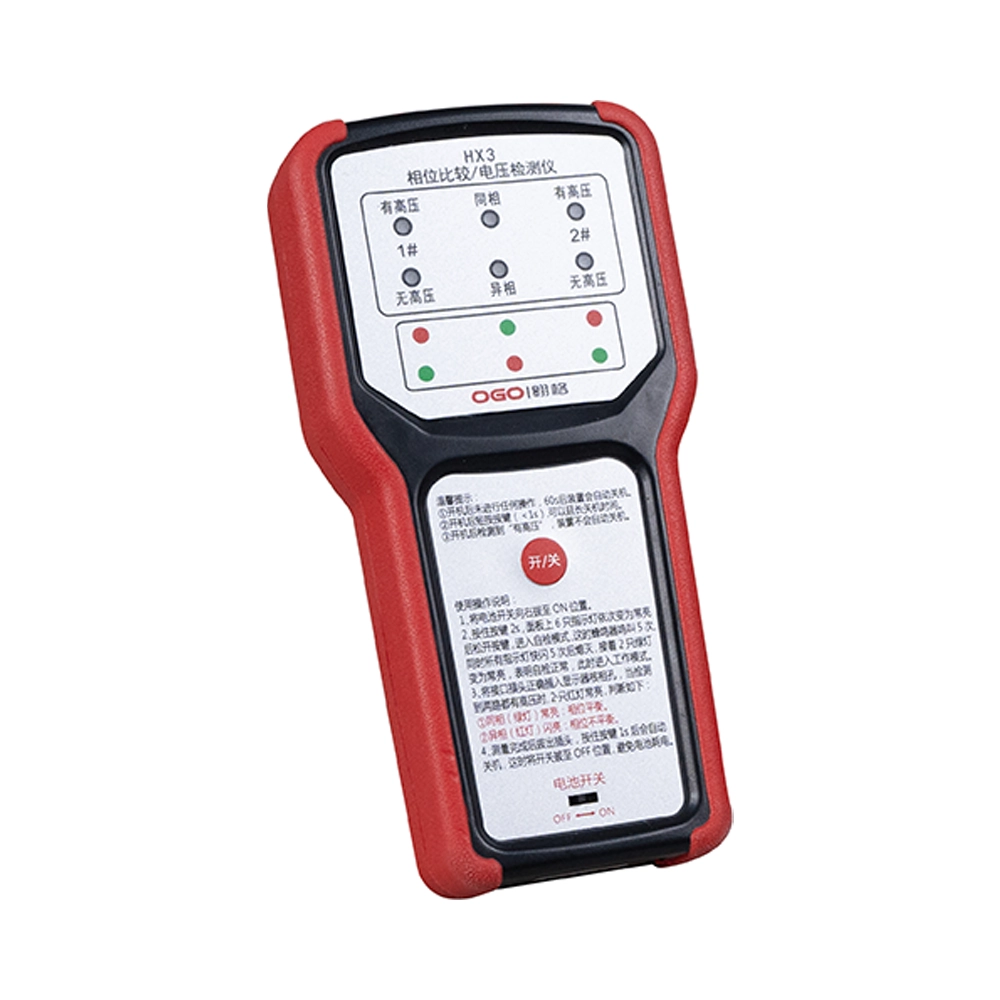

HX3 Phase Comparator for Dual-Circuit VDIS Phase Checking
HX3 Phase Comparator: The HX3 phase comparator works with phase-test terminals on a voltage presence indicating system to verify phase consistency and phase sequence on site. It is suitable for dual-circuit switchgear, bus-coupler cabinets and maintenance operations where phase checking is required before switching. By supporting secondary phase comparison, it helps reduce misoperation risk and improve electrical safety.
Trusted by world-class brands & organizations of all sizes
Product Details
Product Overview
The HX3 Phase Comparator helps technicians check phase consistency on medium-voltage switchgear. It connects to phase-test terminals on a voltage presence indicating system. Teams use it before switching, bus transfer, or maintenance. This check supports safer field operation. It also gives commissioning teams a simple verification step before energizing equipment. The comparator helps standardize switching checks across project teams.
Phase Checking Method
The HX3 model supports dual-circuit phase checking in switchgear with separate voltage circuits. Technicians can compare secondary phase signals without direct contact with primary conductors. The process helps verify phase sequence and phase consistency. It also reduces judgment errors during on-site work. The simple workflow helps crews complete checks in a clear order. It keeps phase checking separate from primary circuit operation.
Application Range
The comparator suits dual-circuit switchgear, bus-coupler cabinets, ring main units, and maintenance test points. Operators use it before loop closing or load transfer. Maintenance teams also use it after wiring changes or equipment replacement. This practice adds a useful safety step. It supports routine service, acceptance tests, and project commissioning.
VDIS System Support
The HX3 Phase Comparator works with VDIS phase-test terminals and related auxiliary circuits. It helps identify mismatched phases before operators complete a switching action. The clear comparison result supports safer decision making. It also improves commissioning efficiency. The tool helps technicians avoid repeated manual checks.
Project Support
Suppliers can match the comparator with required test terminals, leads, and cabinet layouts. Product documents can include operation notes and connection diagrams. Selection guidance helps engineers match the comparator to each VDIS scheme. This support helps customers prepare clear operating procedures. With dual-circuit phase checking, the HX3 Phase Comparator supports switchgear factories, contractors, and service teams.
