Product Overview

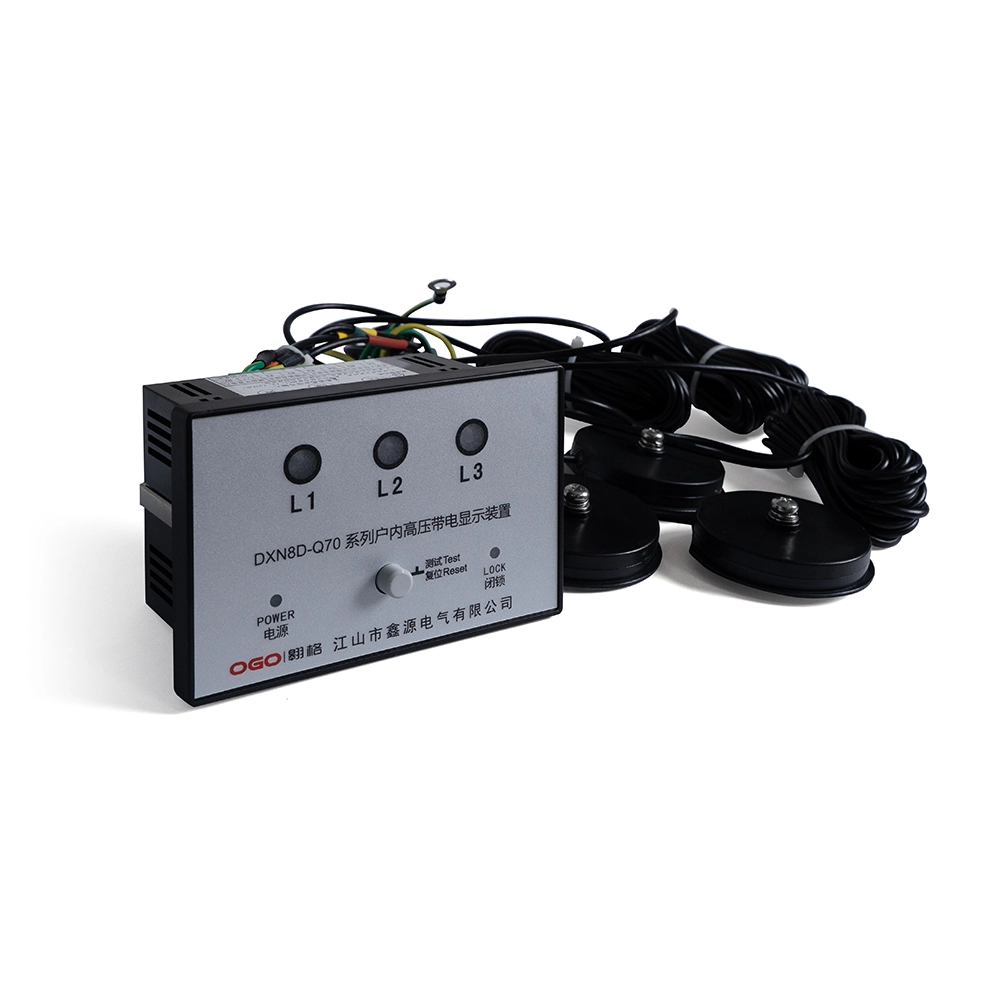

The Inductive High Voltage Indicator Display is designed for indoor medium-voltage switchgear where operators need a clear reference before switching, grounding, inspection, cable testing, or routine service. It helps show the status of line, busbar, and cable compartments from the panel front. The design suits ring main units, compact substations, prefabricated panels, retrofit cabinets, and batch production for switchgear manufacturers.

Structure and Installation

The this configuration layout supports quick front-panel mounting and neat cabinet assembly. Installers can arrange the indicator, sensor wiring, terminal connections, and label area in a compact space without disturbing the main circuit layout. The structure helps standardize panel cutouts, simplify replacement, and reduce service time during production, commissioning, and maintenance.

Electrical Interlocking

When used with suitable cabinet circuits, the indication output can support safer interlocking logic and operation confirmation. It helps provide an additional status reference before door opening, grounding, or manual switching. The arrangement improves operating discipline and gives maintenance teams a clearer basis for checking cabinet condition.

Safety Function

Clear front-panel indication helps operators judge whether the primary circuit may still be energized. This visible reference supports safer procedures before opening compartments, installing grounding devices, or performing cable maintenance. The product does not replace formal safety rules, but it improves the information available to technicians during daily work.

Custom Options and Project Support

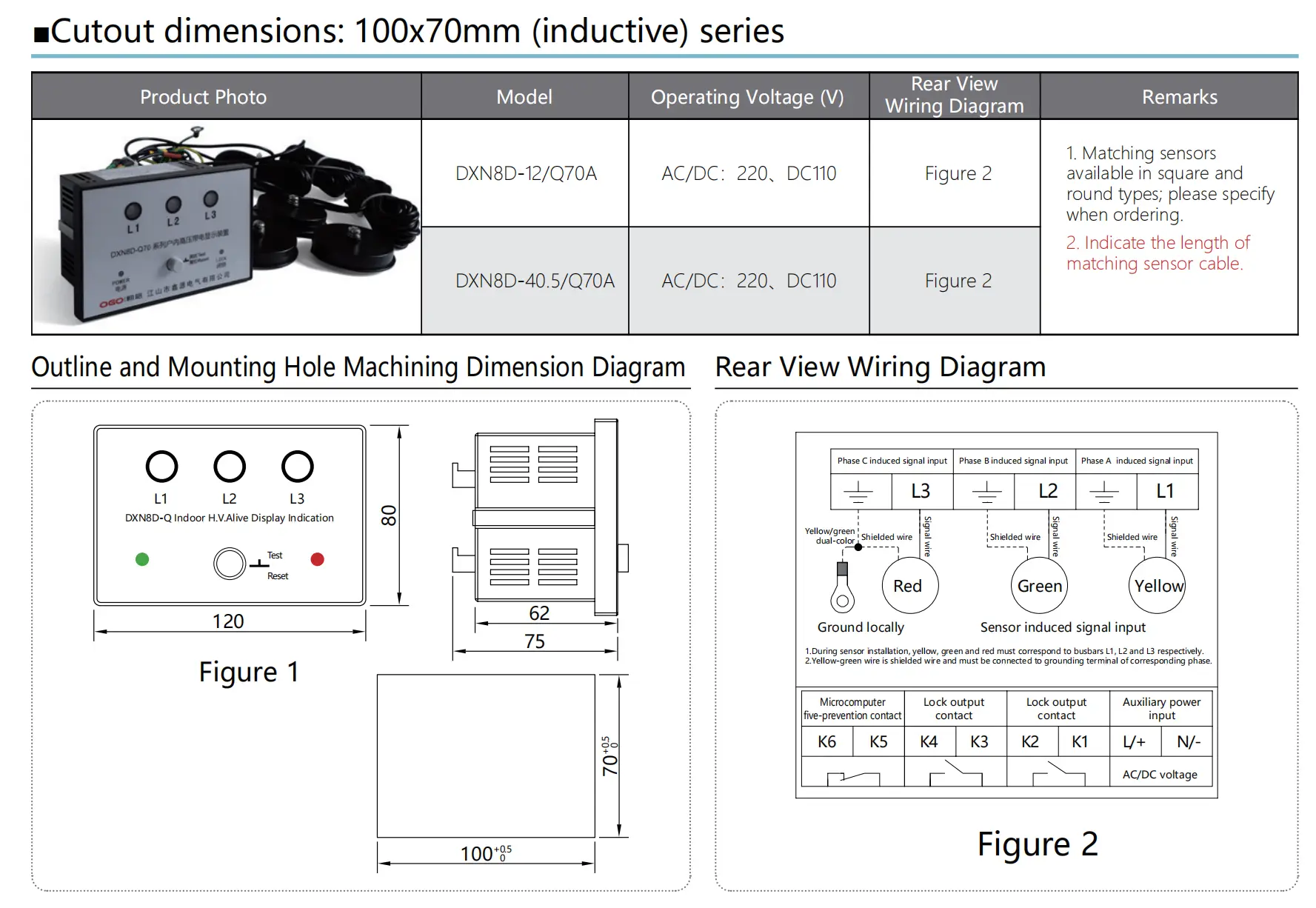

For OEM and ODM projects, Inductive High Voltage Indicator Display can be matched with different panel cutouts, operating power requirements, sensor capacitance values, alarm outputs, and wiring diagrams. Product pages can include outline drawings, rear wiring diagrams, and selection tables to help engineers confirm compatibility before ordering. This support helps panel builders, contractors, and system integrators standardize procurement.
